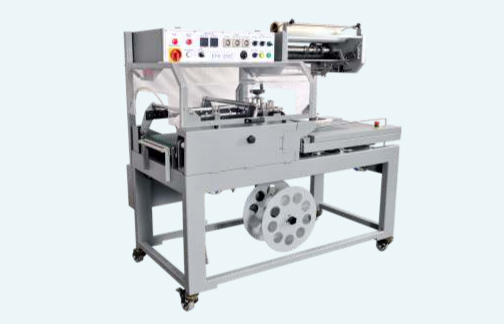

EFK 250 / 250C and EFK 250AC Automatic L Sealer
- EFK 250 / 250C and EFK 250AC Automatic L sealers are used to automatically wrap products in center-folded film.
- The center-folded film is inverted and opened by inverting triangles at top and bottom of in-feed conveyor that allows the product traveling on the conveyor to move inside the film.
- The product is detected by electronic eyes and advances into the sealing area with the film where it is automatically sealed inside the film by the sealer.
- The L sealers are available with different sealing knife designs for various heat-sealable films.
Brochure
Video
Features
- Made under Japanese Collaboration
- Fully Automatic Pack Length recognition by horizontal or vertical eyes
- Fast changeover with easy adjustment for width and height
- Choice of Hot knife design for various shrink films
- Staging Option for High Speed
- Product safety alarm on sealing bar and machine stop
- Long life cartridge heaters & silicon pads
- Optional PE film sealing systems
Technical Details
| Sealing a Ares (W X L) | EFK 250 / EFK 250C : 450 x 570 mm EFK 250AC : 450 x 570 mm |
| Product Pass Through Height | EFK 250 / EFK 250C : 125 mm EFK 250AC : 200 mm |
| Max Product Dimensions (W x L) | EFK 250 / EFK 250C : 380 x 500 mm EFK 250AC : 380 x 500 mm |
| (Subject to maximum film width) H | EFK 250 / EFK 250C : 100 mm / 175 mm
EFK 250AC : 175 mm |
| Maximum Film Width | EFK 250 / EFK 250C : 500 mm
EFK 250AC : 500 mm |
| Sealing Platform Position | EFK 250 / EFK 250C : Fixed Height
EFK 250AC : Adjustable with Centre Seal |
| Speed of Wrapping (Depends on product) | EFK 250 / EFK 250C : up to 25 ppm
EFK 250AC : up to 25 ppm |
| Minimum product Length | EFK 250 / EFK 250C : 100 mm / 50 mm
EFK 250AC : 50 mm |
| Working Height | EFK 250 / EFK 250C : 850 + 50 mm
EFK 250AC : 800mm+50 mm |
| Power Requirement | EFK 250 / EFK 250C : 230V/1 PHASE / 50-60Hz/1.3 KW
EFK 250AC : 230V/1 PHASE / 50-60 Hz/1.5 KW |
| Air Pressure | EFK 250 / EFK 250C : 5 BAR (72PSI)
EFK 250AC : 5 BAR (72PSI) |
| Air Consumption | EFK 250 / EFK 250C : 1700NI / HR ( 1cf.m.)
EFK 250AC : 1700NI / HR (1cf.m.) |
| Machine Dimensions (W x L) | EFK 250 / EFK 250C : 840x1630x165mm
EFK 250AC : 900x1700x1650 mm |
| Net Weight | EFK 250 / EFK 250C : 350 kg
EFK 250AC : 400 kg |
| Suitable Tunnel | EFK 250 / EFK 250C : ST 90
EFK 250AC : ST 120 |
