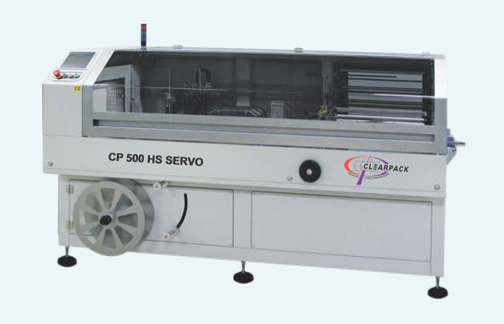

CP 500 HS SERVO Continous Side Sealer + Tunnel
- Modularity and excellent price/quality ratios are the main features characterizing the automatic side sealers of the CP series.
- All the models of this range can be supplied with or without shrink tunnel.
- Compared to the traditional L-sealing hood packers, the CP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films.
- The CP series of modular sealers with shrink tunnel includes different models for various ranges of output depending upon product dimensions.
Brochure
Video
Features
- Continuous packer with 3 belts controlled by brushless servomotor
- Continuous working cycle (box motion) by cam electronics self-configuring
- Cross sealing bar with PTFE-coated sealing blade controlled by servomotor
- Control system equipped with Operator Interface with Panel PC and 7” full-colour touch screen display with 32-bit microprocessor
- Power and control section consisting of drivers and inverters for each motor, IN/OUT control modules with 16 digital inputs/outputs, analog inputs control modules, thermocouple-reading control modules
- Simple and precise system to check all operations such as electronic checking of the film tension, adjustment of cross bar height, dual sealing temperature adjustment, both for the longitudinal and the cross sealer, sealing time adjustment, possibility of packaging individual packs or groups of products, electronically controlled conveyor belt speed, process statistics
- Motorized center seal system
- 20 storable programs
- Infeed conveyor released from the square to facilitate the film insertion
- Systems for the leading guide and the decrease of the film tension placed before the cross bar and the longitudinal
- Height adjustment of the longitudinal sealer
- Reduced power consumption
- Compliance with CE regulations
Technical Details
| Power Supply | 220-240 / 380-415 V 3PH + PE / 3PH + N + PE 50/60 Hz |
| Installed Power | 8500 W |
| Compressed Air Pressure | 6 Bar |
| Compressed Air Consumption | <0,03 Nl/p |
| Sealing Bar | 520 mm |
| Maximum pack height | 200 mm |
| Speed of Conveyors | 5-35 m/min |
| Average Output per hour | up to 7200 pph |
| Maximum size of film reel | 600-ø 350 mm |
| Machine size | 2725 x 1550 mm h 1505-1660 mm |
| Machine net weight | 830 kg |
| Usable Shrink Films | Polyolefin Film up to 30 µ |
