LHS 115
Semi Automatic Machines
Shrink Wrappers : Semi Automatic Machines : LHS 115
LHS 115

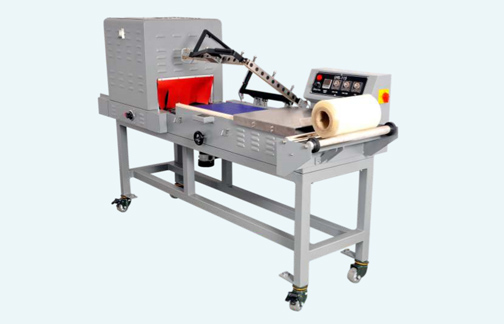

- LHS 115 is a semi-automatic shrink wrapping machine consisting of L sealer and Shrink Tunnel in a single frame.
- This machine separates sealing and shrinking cycles for faster operation.
- The operator first inserts the product in the centre-folded shrink film; sealing is done with L sealer and is followed by shrinking in a compact shrink tunnel.
- The bottom heated belt inside the tunnel gives excellent finish all around the pack.
Brochure
Video
Features
- Automatic control and adjustment of sealing time
- Cleaning function
- Product counter
Technical Details
| Sealing Dimensions | 380W x 500 L mm |
| Tunnel Opening (H) | 50 / 200 mm |
| Maximum Product Dimensions | 330W x 480 L x 100/150 Hmm |
| Maximum Film width | 480 mm |
| Wrapping speed | Up to 900 Products per hour |
| Heaters | 2kW Spiral +0.5kW Strip |
| Power Consumption | 2kw / 3.5kW |
| Electrical Requirement | 230V AC 50 / 60 Hz, 1P + N PE |
| Machine Dimensions | 1950 L x 700 W x 1360 H mm |
