LST 50 Super
Semi Automatic Machines
Shrink Wrappers : Semi Automatic Machines : LST 50 Super

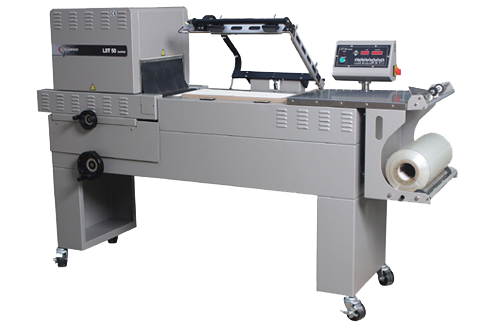

LST 50 Super
- LST 50 Super is a compact, versatile and rugged Semi-Automatic Shrink Wrapping System consisting of L sealer and Shrink Tunnel
- With a 50 cm long x 38 cm wide sealing area, it is suitable for most products that need to be shrink-wrapped
- The bottom-heated belt in the tunnel gives a mirror-finish to the bottom of the pack
- Six parameters are available for optimum sealing and shrinking result and speed of operation
Brochure
Video
Features
- Advanced Microprocessor-Based Electronic Controls
- Self-diagnostic function with alarms for troubleshooting
- Automatic control and adjustment of sealing time
- Product counter
- Heavy-gauge steel construction with powder coated finish
- Heavy-duty high temperature blower
Technical Details
| Production Speed | Up to 700 packages/hr, depending on product size and type of film used |
| Sealing Dimensions (mm) | 380 x 510 |
| Max Product Dimensions (mm) | 350 W x 480 L x 120 H |
| Max Film Roll Width (mm) | 430 |
| Inside Tunnel Dimensions (mm) | 380 W x 510 L x 150 H |
| Tunnel Belt | Silicon belt conveyor with adjustable bottom heat |
| Conveyor Speed | Variable, up to 6 m/min |
| Power Supply | 220V/ 240V, 1 Phase, 50/60 Hz |
| Max Power | 2.5 kW |
| Machine Dimensions (mm) | 580 W x 2130 L x 1240 H |
| Machine Packing Dimensions (mm) | 2040 L x 770 W x 700 H |
| Weight, Gross (kg) | 300 |
