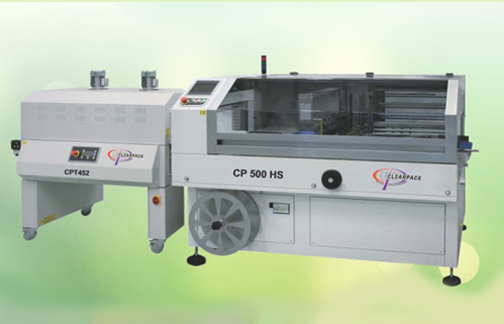

CP 500 HS / CP 700 HS Intermittent Side Sealer
- Modularity and excellent price/quality ratios are the main features characterizing the Automatic Intermitent Side Sealers of the CP series.
- Compared to the traditional L-sealing hood packers, the CP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films.
- The CPseries of modular sealers with shrink tunnel includes different models for various ranges of output depending upon product dimensions.
Brochure
Video
Features
- Continuous packer with 2 belts
- Cross sealing bar with PTFE-coated sealing blade controlled by Inverter and Encoder
- IN/OUT control modules with 16 digital inputs/outputs
- Conveyor closing system included
- Motorized center seal system
- 20 storable programs
- Lateral motion device of the longitudinal sealer
- Reduced power consumption
- Compliance with CE regulations
Technical Details
| Type | CP 500 HS : Side Seal
CP 700 HS : Side Seal |
| Installed Power | CP 500 HS : 2500 W
CP 700 HS : 2700 W |
| Compressed Air Pressure | CP 500 HS : 6 Bar
CP 700 HS : 6 Bar |
| Compressed Air Consumption | CP 500 HS : 0,6 Nl/p
CP 700 HS : 0,6 Nl/p |
| Sealing Bar | CP 500 HS : 500 mm
CP 700 HS : 700 mm |
| Maximum pack height | CP 500 HS : 200 mm
CP 700 HS : 250 mm |
| Speed of Conveyors | CP 500 HS : 11-45 m/min
CP 700 HS : 11 - 45 m/min |
| Average Output per hour | CP 500 HS : up to 6000 pph
CP 700 HS : up to 4200 pph |
| Maximum size of film reel | CP 500 HS : 600-ø 350 mm
CP 700 HS : 950 - ø 350 mm |
| Machine size | CP 500 HS : 2180 x 1545 mm
CP 700 HS : 2625 x 1895 mm |
| Machine net weight | CP 500 HS : h 1525-1655 mm 730 kg CP 700 HS : h 1625-1755 mm 950 Kg |
| Usable Shrink Films | CP 500 HS : Polyolefin Film up to 30 µ
CP 700 HS : up to 30 µ |
